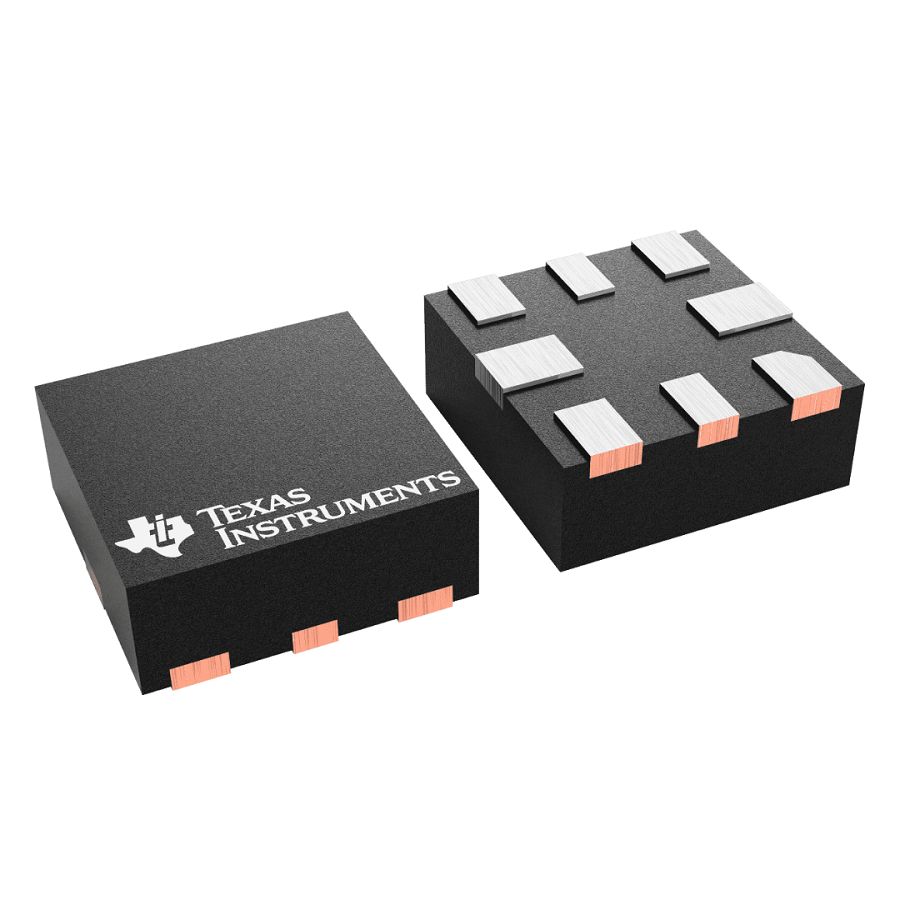

REF3325AIRSER
Manufacturer:
Texas Instruments
Mfr.Part #:
REF3325AIRSER
Datasheet:
Description:
Voltage References UQFN-8 SMD/SMT Output Voltage:2.5 V 5 mA 0.15 % 30 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 0.15 % |
| Length | 1.5 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Temperature Coefficient | 30 ppm/°C |
| Height | 600 µm |
| Packaging | Reel |
| Thickness | 0.55 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 2.7 V |
| Output Current | 5 mA |
| Output Voltage | 2.5 V |
| Output Type | Fixed |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Ambient Temperature Range High | 150 °C |
| Operating Supply Current | 8.5 µA |
| Quiescent Current | 3.9 µA |
| Max Supply Current | 8.5 µA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Reference Type | Series |
| Nominal Supply Current | 3.9 µA |
| Min Output Voltage | 2.5 V |
| Max Junction Temperature (Tj) | 150 °C |
| Reference Voltage | 2.5 V |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Initial Accuracy | 0.15 % |
| Shunt Current | 5 mA |
Stock: 394
Distributors
pcbx
pcbxUnit Price$1.84867
Ext.Price$1.84867
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.84867 | $1.84867 |
| 10 | $1.55126 | $15.51260 |
| 25 | $1.41820 | $35.45500 |
| 50 | $1.29656 | $64.82800 |
| 100 | $1.18534 | $118.53400 |
| 300 | $1.14076 | $342.22800 |
| 500 | $1.09785 | $548.92500 |
| 1000 | $1.06002 | $1060.02000 |
